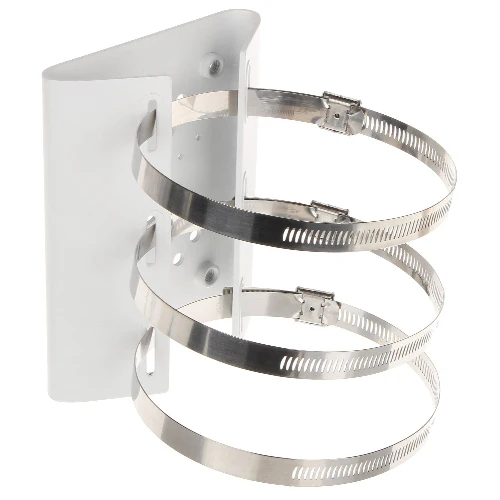

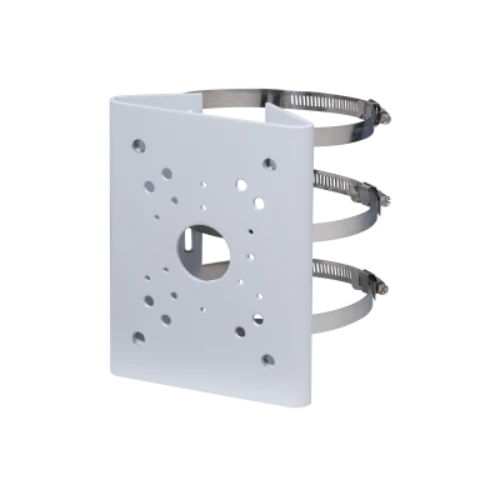

Dahua DH-PFA150 Triple Clamp Pole Mount Bracket

Dahua DH-PFA150 Triple Clamp Pole Mount Bracket

Its built out of SECC and SUS304 materials.

It is compatible with junction boxes, wall mounts, power boxes, and universal joints, providing strong and stable support.

Key Features:

• Material: SECC (bracket), SUS304 (hoop)

• Load Bearing: Up to 7 kg (15.43 lb)

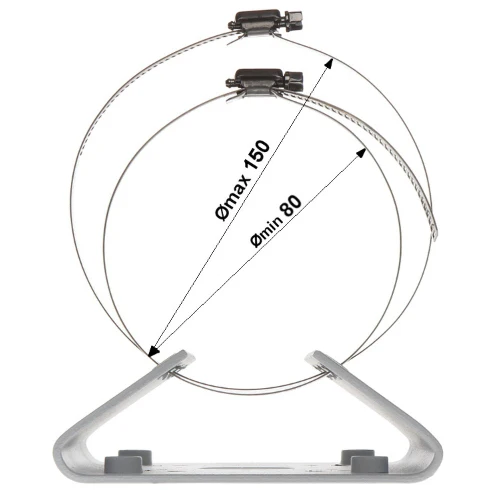

• Installation: Pole mount (for poles Ø80–150 mm)

• Colour: White

• Net Weight: 1.09 kg | Gross Weight: 1.28 kg

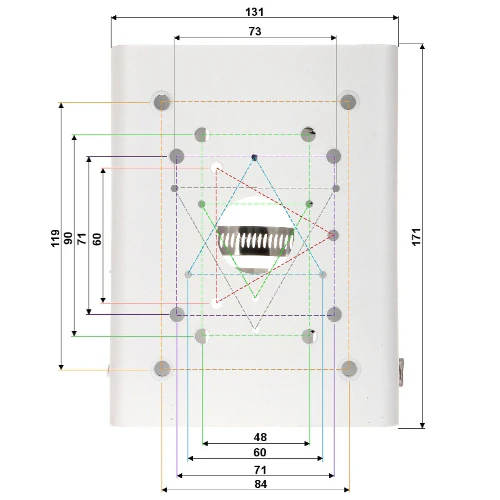

• Dimensions: 130.4 × 45.0 × 170.0 mm

• Packaging Size: 177.0 × 177.0 × 52.0 mm

• Operating Temperature: –40 °C to +60 °C

• Humidity: 10%–90% RH
