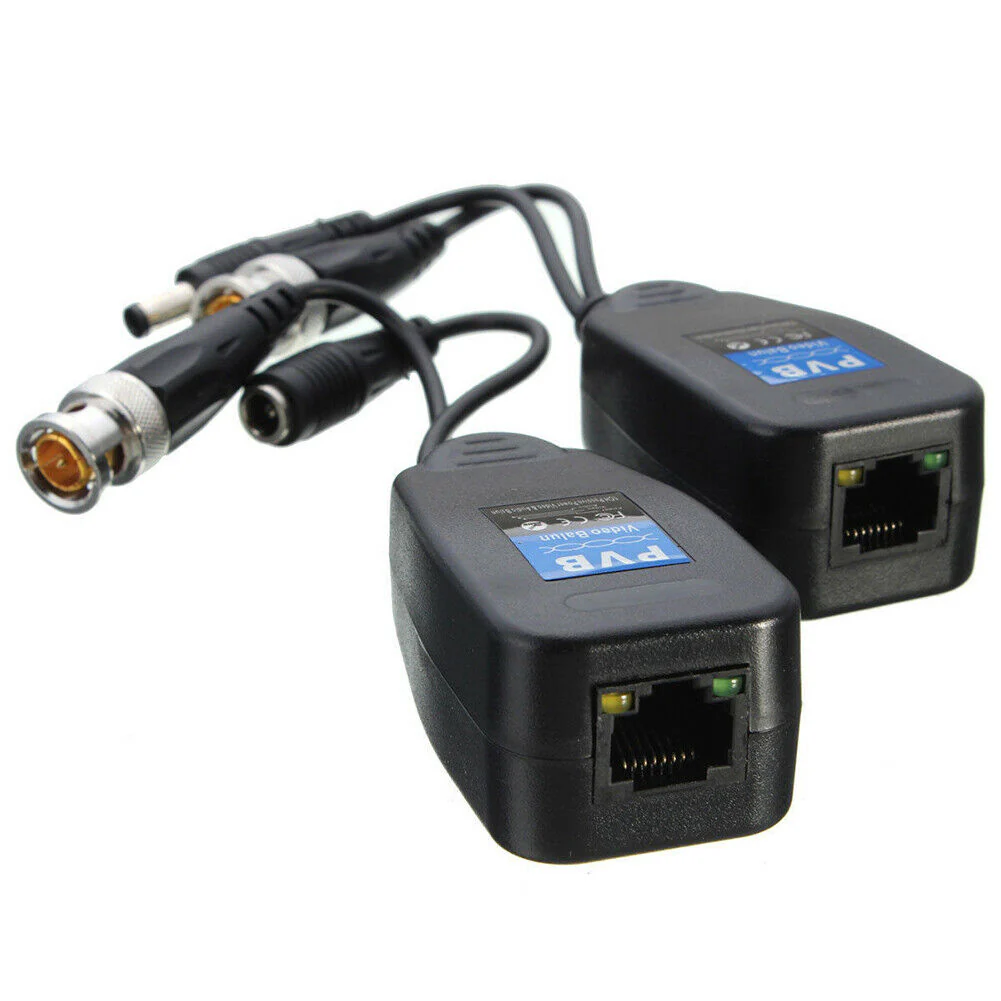

Video Balun CCTV 8MP Coax BNC Power Connector Transceiver to RJ45

VIDEO BALUN CCTV COAX BNC DATA POWER TRANSCEIVER TO RJ45 | BALUN CONNECTOR

A video balun allows you to convert the signal from a CCTV camera that uses a coax cable to a CAT5e cable.

Features

• Up to 450m for 720p CVI cameras (Video).
• Up to 250m for 1080p CVI Cameras (Video).
• Up to 250m for 720/1080p TVI cameras (Video).
• Up to 320m for 720p AHD cameras (Video).
• NTSC, PAL and SECAM video formats.
• No power supply is required.
• 60dB cross talk and noise immunity.
• Built-in transient suppression protection.
• Compact size and easy installation
• Must be used in pairs.

Specifications

• Balun Connectors
• Frequency Response: DC 8MHz
• Attenuation: 0.5dB
• CMRR (Common Mode Rajection Ratio): 60dB
• Impedance: BNC: 75Ω; RJ45: 100Ω
• RJ45 CAT5E / CAT6
• Working Temperature: -10 to + 70 Degree Celsius
• Storage Temperature: -30 to + 70 Degree Celsius
• Humidity: 0 to 95%
• Features: Portable, Durable, Mini Size
• Dimensions: 19cm x 14cm x 5cm/7.48" x 5.51" x 1.97" (Approx.)
• Cable Length: 12cm/4.72" (Approx.)
